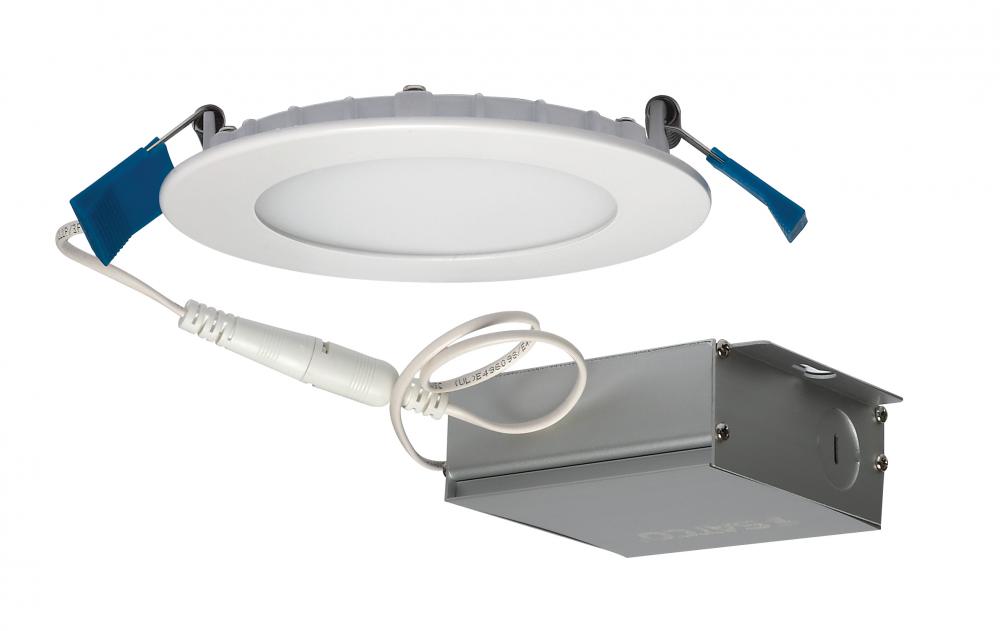

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver (S11600)
10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver
Product Specification
Item #
S11600
Dimensions
Height: 0.94"
Width: 4.75"
Additional product details
Internal #
40JQUQP
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Additional Info
Integrated j-box for direct wire installation
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
4.75
Dimmable
Yes-Dimmable
Each Height
5.39
Each Length
5.39
Each Width
2.13
Lumens
670L
Tariff Code
9405.40.6000
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.083A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
108
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.25 in. Cutout
Clearance Height
2
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0358
Each Quantity
1
Efficacy
67.00 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Material
Aluminum
Max Drywall Thickness
5/8 in.
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.91
Quantity In Pack
1
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
10WLED/DW/EL/4/930/RND/RD
Sloped Ceiling Compatible
No
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.6899999999999999
Finish
