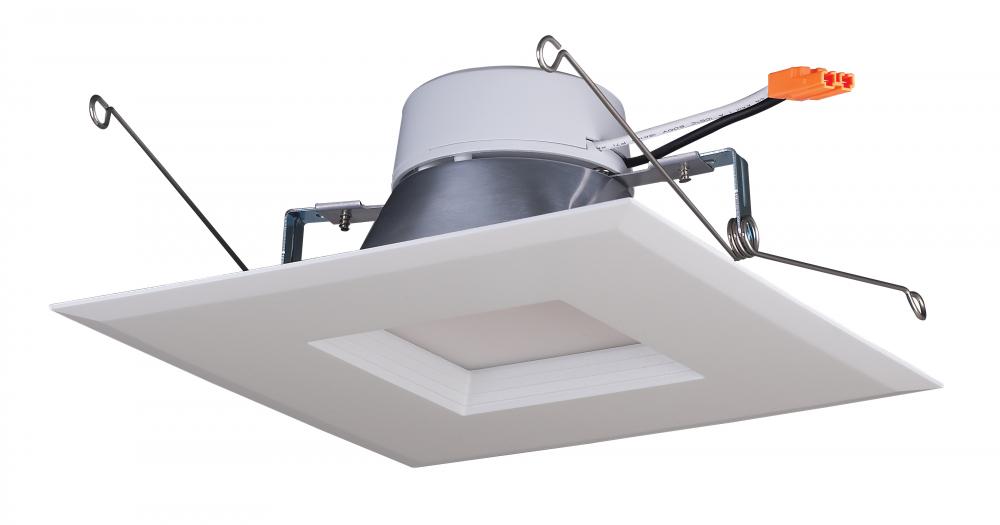

11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 5000K; 120 volt; White Finish (S39773)
11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 5000K; 120 volt; White Finish
Product Specification
Item #
S39773
Dimensions
Height: 3.25"
Width: 7.41"
Additional product details
Internal #
40JQXMY
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Additional Info
Trim material is Thermo Plastic; Trim color is White
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Yes-Dimmable
Each Height
7.72
Each Length
8.460000000000001
Each Width
3.46
Length
7.41
Lumens
1000L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.096A
ANSI Base
E26 Adapter
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
5-6 in.
CCT Selectable
No
CEC
T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.1308
Each Quantity
1
Efficacy
86.96 LPW
FCC Compliant
Yes
Feature 1
Natural light
Feature 2
LED
Feature 3
Wet rated for indoor use
Feature 4
L:7.51 W:7.41 H:3.25
Feature 5
Square, White/Frosted
Finish Family
White
Fixture shape
Square
IC Rated
Yes
Incandescent Equivalent
85W
Indoor Outdoor
Indoor
Lens Finish
Frost
Lens Material
Plastic (PS)
Long Description
Satco's S39773 11.5-watt, 5-6 inch square LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long l
Material
Thermo Plastic (PBT)
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.97
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 11.5-watt, 5-6 inch square LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting,
Safety Listing
cULus - Classified;cULus - Certified
SDS class
LED_Fixture
Short Description
11.5WLED/5-6/SQ/50K/120V
Temperature (CCT)
5000K
Title 20 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.65
