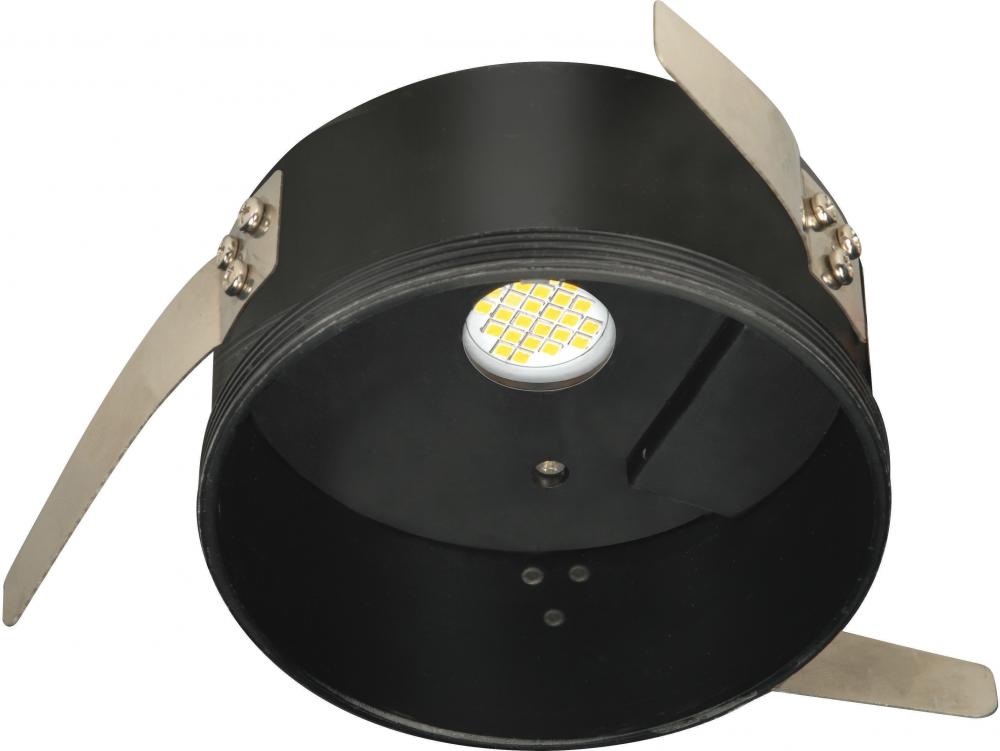

13.5 watt; 5"- 6" base unit LED Downlight / Retrofit Fixture; 2700K; 120 volts (S9504)
13.5 watt; 5"- 6" base unit LED Downlight / Retrofit Fixture; 2700K; 120 volts
Product Specification
Item #
S9504
Dimensions
Height: 2.13"
Width: 4.56"
Additional product details
Internal #
40JUPK4
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Black
Style
Contemporary
Option
LED
, Prop 65
Category
Recessed
Sub Category
Customizable
Style
Contemporary
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
4.56
Dimmable
Yes-Dimmable
Each Height
3.19
Each Length
7.68
Each Width
6.97
Lumens
830L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.113A
ANSI Base
Integrated
BAA Compliant
No
CA Prop-65
Lead
Can Size
5-6 in.
CCT Selectable
No
CEC
Non-Compliant - Insufficient LPW
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase
Each Cube
0.0988
Each Quantity
1
Efficacy
61.48 LPW
FCC Compliant
Yes
Finish Family
Black
Fixture shape
Round
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
Installation Notes
Fits 5in. universal cans or 5in. / 6in. retrofit
JA8 Compliant
No
Material
Aluminum
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.99
Quantity In Pack
1
R9 Value
51
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
13.5WLED/5-6-BASE/27K/120V
Temperature (CCT)
2700K
Title 20 Compliant
No
Title 24 Compliant
No
Trim Color
Black
Wattage Selectable
No
Weight Lb.
0.6899999999999999
