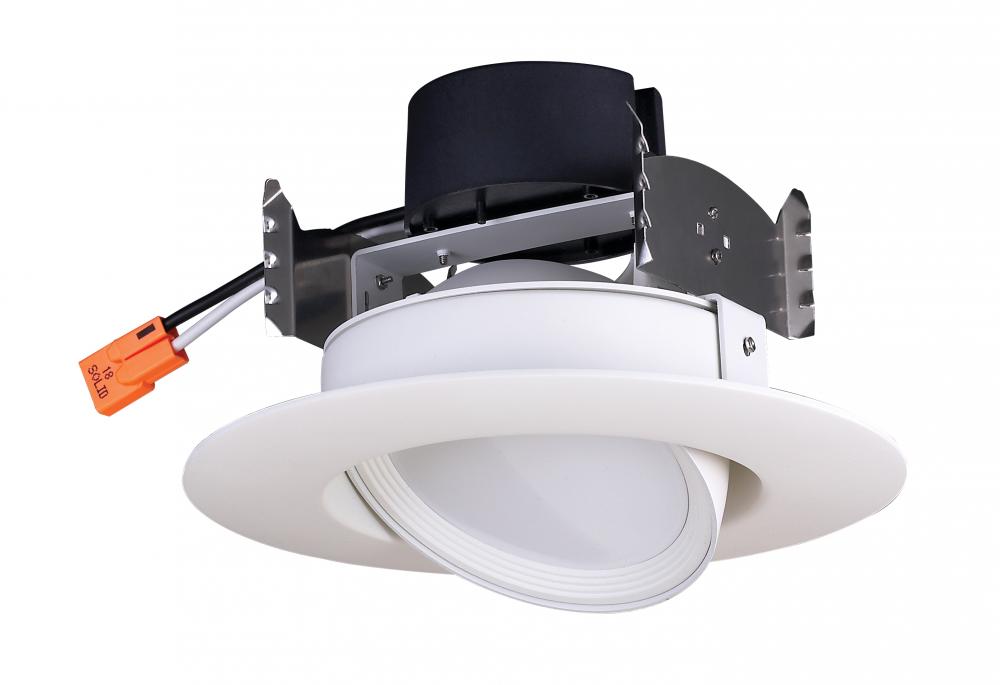

7 watt LED Directional Retrofit Downlight - Gimbaled; 4"; 2700K; 90' Beam spread; 120 volts; (S39466)
7 watt LED Directional Retrofit Downlight - Gimbaled; 4"; 2700K; 90' Beam spread; 120 volts; Dimmable; White Finish
Product Specification
Item #
S39466
Dimensions
Height: 3.47"
Width: 6.00"
Additional product details
Internal #
40JQWQZ
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Additional Info
Trim material is Thermo Plastic; Trim color is White
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
6
Dimmable
Yes-Dimmable
Each Height
6.69
Each Length
6.53
Each Width
3.94
Lumens
600L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.058A
ANSI Base
E26 Adapter
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
4 in.
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Each Cube
0.09959999999999999
Each Quantity
1
Efficacy
85.71 LPW
FCC Compliant
Yes
Feature 1
Warm white light
Feature 2
LED Directional
Feature 3
Damp rated for indoor use
Feature 4
H:3.47 D:6.00
Feature 5
Round, White/Frosted
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
50W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Plastic (PS)
Long Description
Satco's S39466 7W, 4 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. This fixture is damp rated for indoor use
Material
Thermo Plastic (PBT)
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.94
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The SATCO 7W, 4 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. This fixture is damp rated for indoor use.
Safety Listing
cULus - Classified;cULus - Certified
SDS class
LED_Fixture
Short Description
7WLED/DIR/4/90'/27K/120V
Temperature (CCT)
2700K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.86
Finish
