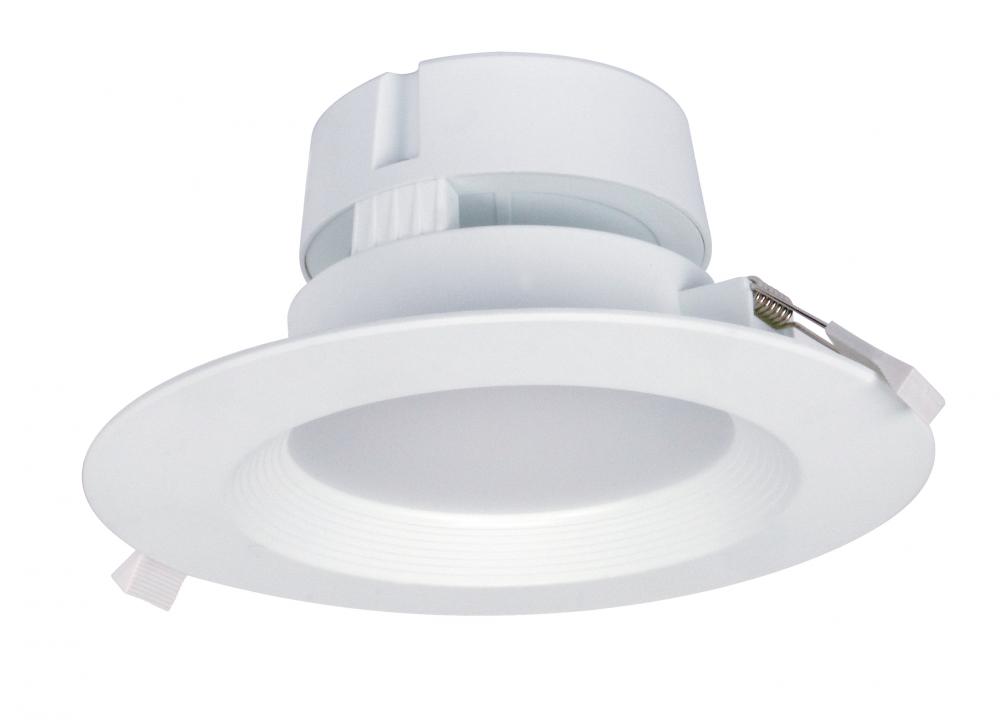

9 watt LED Direct Wire Downlight; 5-6 inch; 2700K; 120 volt; Dimmable (S9026)
9 watt LED Direct Wire Downlight; 5-6 inch; 2700K; 120 volt; Dimmable
Product Specification
Item #
S9026
Dimensions
Height: 3.63"
Width: 7.44"
Additional product details
Internal #
40JQXP8
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Contemporary
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Contemporary
Avg Rated Hours
40000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
7.44
Dimmable
Yes-Dimmable
Each Height
7.95
Each Length
7.87
Each Width
3.94
Lumens
700L
Tariff Code
8539.50.0091
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.075A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Ceiling Aperture
5.125 in. Cutout
Connection
Direct Wired
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Each Cube
0.1427
Each Quantity
1
Efficacy
77.78 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
JA8 Compliant
No
Max Drywall Thickness
1-1/4 in.
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
9WLED/DW/RDL/5-6/27K/120V
Temperature (CCT)
2700K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
No
Finish
