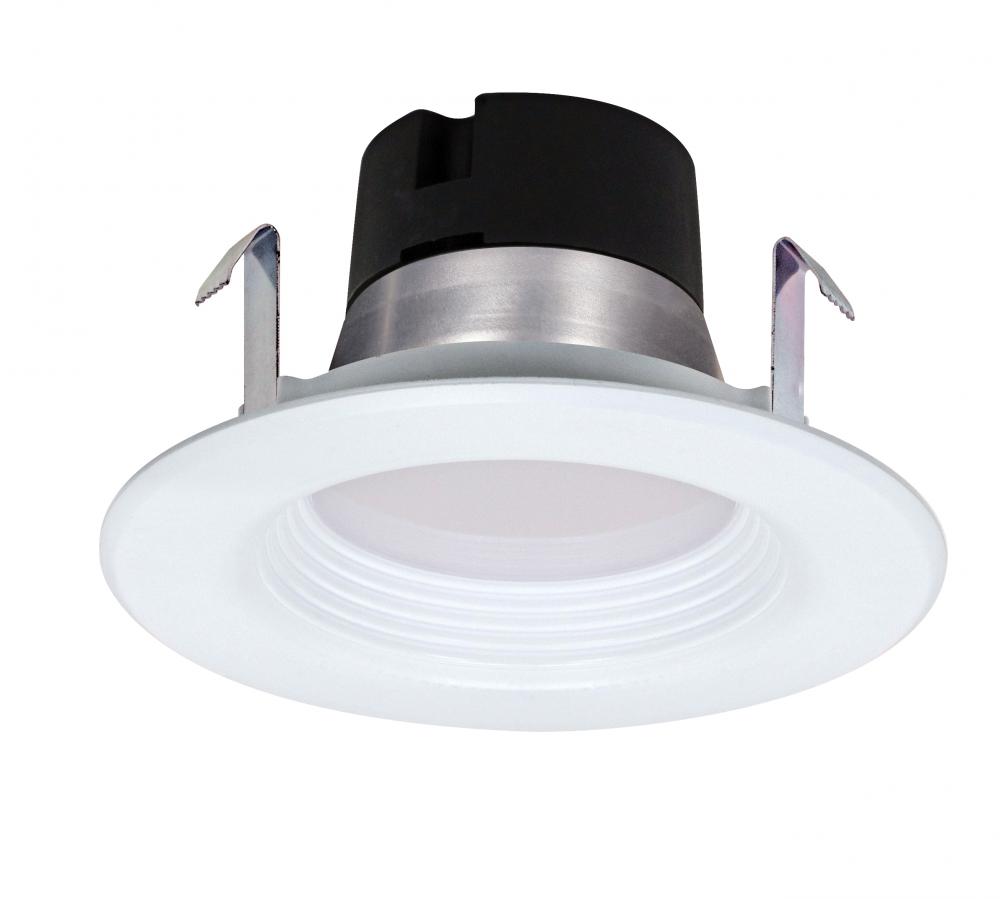

9.5 watt LED Downlight Retrofit; 4"; 2700K; 120 volts; Dimmable (S9713)
9.5 watt LED Downlight Retrofit; 4"; 2700K; 120 volts; Dimmable
Product Specification
Item #
S9713
Dimensions
Height: 2.91"
Width: 5.31"
Additional product details
Internal #
40JUPKU
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Contemporary
Option
LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Contemporary
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
5.31
Dimmable
Yes-Dimmable
Each Height
5.88
Each Length
3.56
Each Width
5.5
Lumens
600L
Tariff Code
8539.50.0091
Warranty
5 Year Limited - Fixtures
Amps
0.079A
ANSI Base
E26 Adapter
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
4 in.
CCT Selectable
No
CEC
T20 Non-Compliant - LPW <80
CEC Alt Sub
S11800R1
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.06660000000000001
Each Quantity
1
Efficacy
63.16 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
50W
Indoor Outdoor
Indoor
JA8 Compliant
No
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.95
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cULus - Classified;cULus - Certified
SDS class
LED_Fixture
Short Description
9.5WLED/RDL/4/27K/120V
Temperature (CCT)
2700K
Title 20 Compliant
No
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.37
